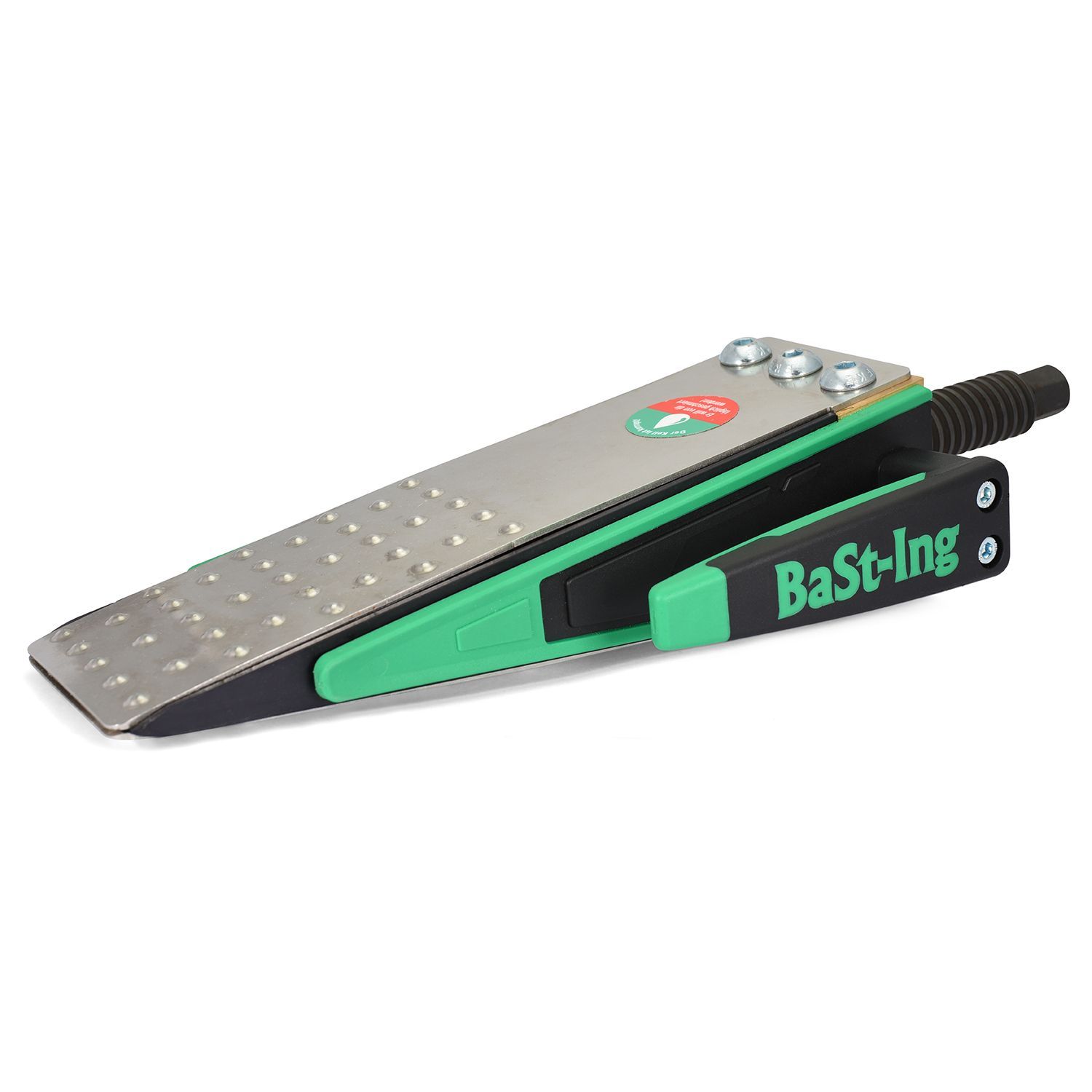

Bast-Ing UniVal Spindle Wedge
UniVal spindle wedge the robust spindle wedge makes the strenuous and time-consuming task of wedging trees extremely easy. Optimized for use with an impact wrench, but can also be operated with a ratchet at any time. The spindle is made of high-quality CrMo steel and turned from solid, meaning the UniVal can withstand even stronger impact wrenches up to 1500 Nm. The UniVal is built for medium to strong wood and daily use in professional wood harvesting. Easy maintenance and sufficient lubrication, even on long working days, are guaranteed by grease nipples on both threaded nuts.
Optimum wrench output 700 - 1000Nm.
Keeping the wedge well greased will optimise performance.
- Maktia DTW1002 & DTW1001
- Milwaukee FHIW2F12 & ONFHIWF12
- Bosch GDS18V-1050H
- DeWalt DCF899 & DCF900
Technical data:
- Lifting force: >25 t
- Weight: 2.7 kg
- Dimensions (LxWxH): 37 x 13 x 8 cm
- Lifting height: 65 mm
- Wedge angle: 14°
- Wedge travel: 16 cm
- Max. impact wrench: 1400 Nm
- Drive: 17mm hexagon
