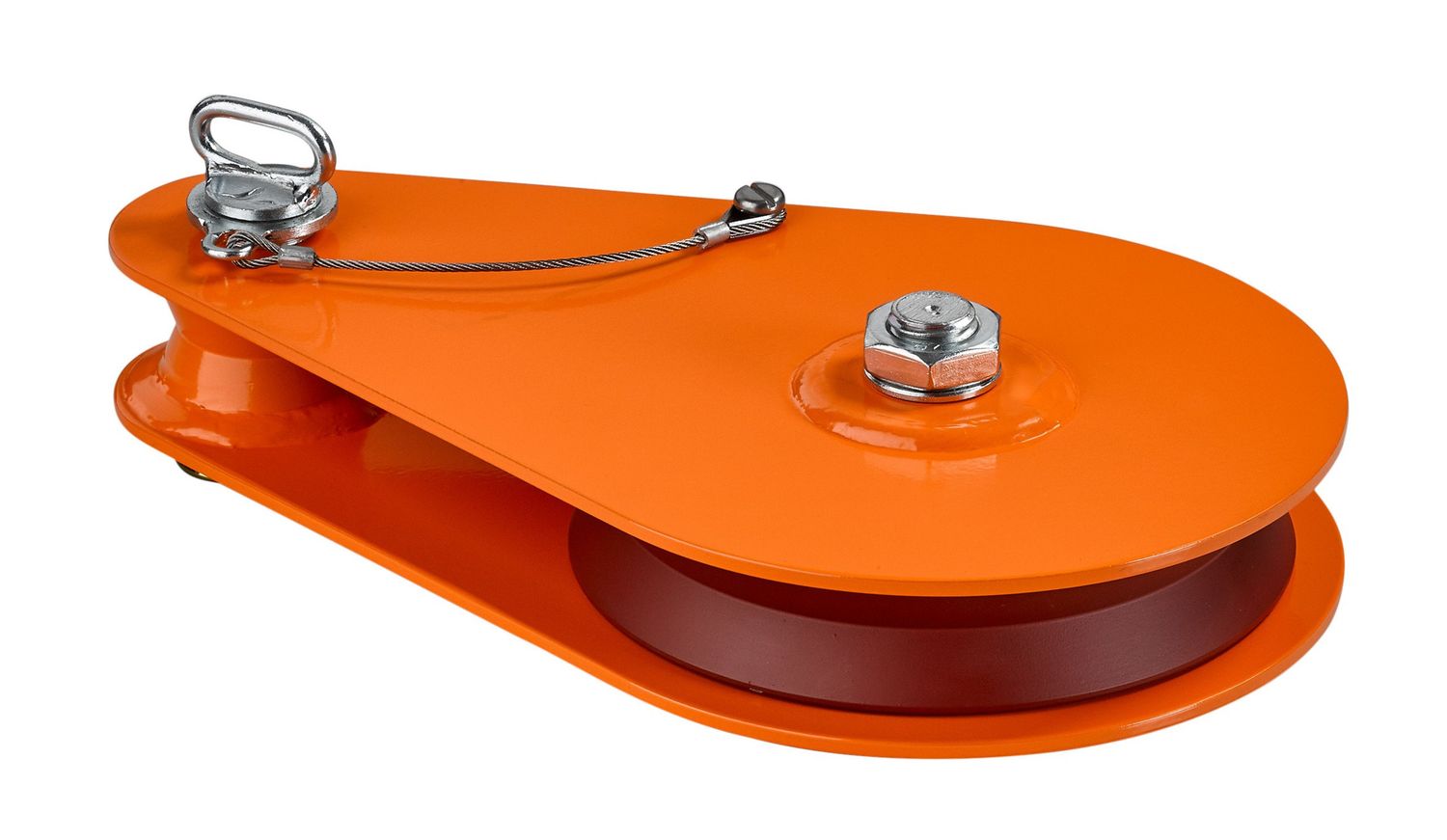

LR165 Deflection Pulley

£530.00
On Sale
was £564.00 Save 6%
In stock: 1 available
Product Details

With steel roller, tapered roller bearings, 4-fold security. Continuous locking screw with safety cable on the sliding ring, therefore no twisting of the cable. Additional safety pin with cable when the roller is closed. Use as a deflection pulley for cable winches. Super light for this rating of pulley

Internal roller diameter: 145mm

Outside roller diameter: 160mm
Max. rope diameter: 16mm
Max. rope speed: 90 m/min
Pulley: steel
Bearing type: ball-bearing

Max. winch tensile load: 8 t

Length: 29.5cm
Width: 18cm
Payload: 16 tons
Weight: 4.6kg
