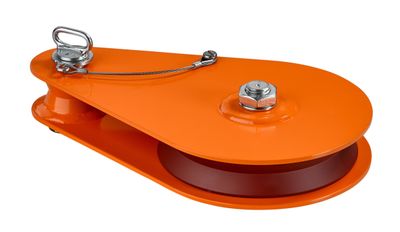

SR FS 16 Pulley

Nordforest Pulley SR-FS16 = 160 kN (16 t) Payload

Pulleys for forwarders working with forestry winches .

CE compliant in line with Directive 2006/42/EC - Machinery and EN 14492-1:2006 / 5.7.4 – Pulleys.

Sheaves for this series were specially developed for rough use with forestry winches when skidding and provide maximum safety. The sheave’s groove is especially deep with high edges at 48° to the winch cable, so extremely safe. The pulley size complies with all applicable standards for forestry winches.

The pulley’s retaining lug absorbs lateral forces and simultaneously ensures the correct anchor position (webbing or round sling). The locking pin cannot be lost, is secured automatically and then backed up with a threaded locking lever.

• Max rope diameter 14mm
• Sheave size 180mm Type steel/ball bearing
• Weight 6.9kg
• Max Speed 120 Metres/min
